Scrap Palletizer System

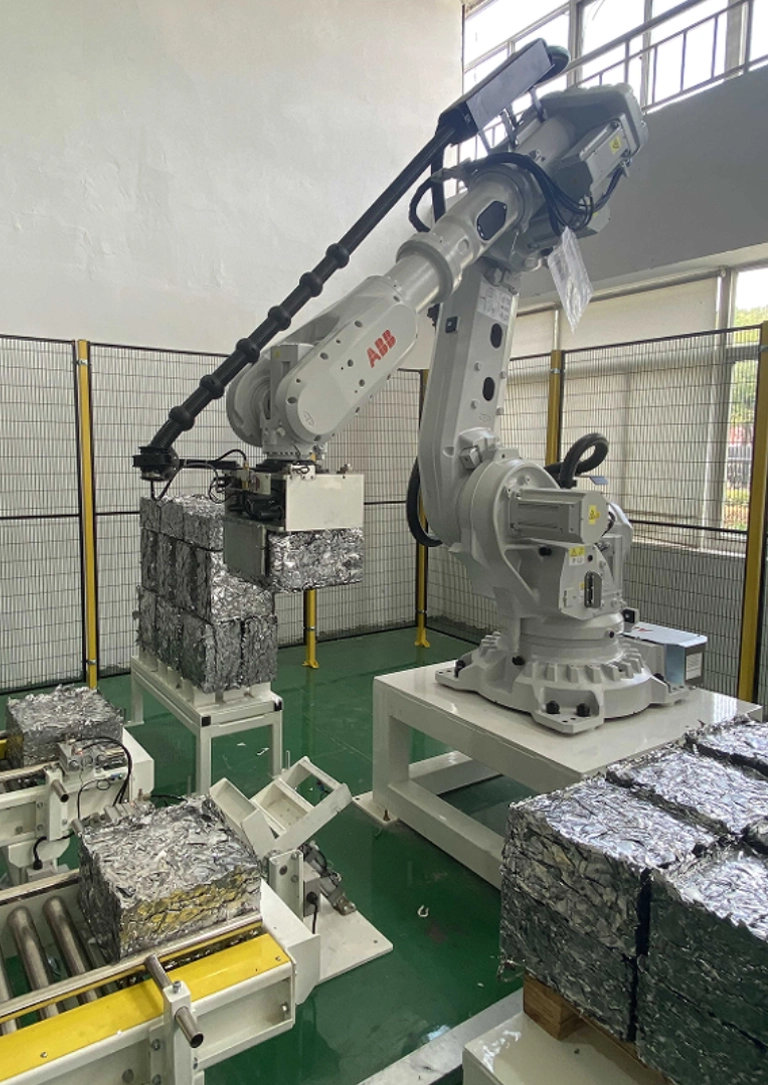

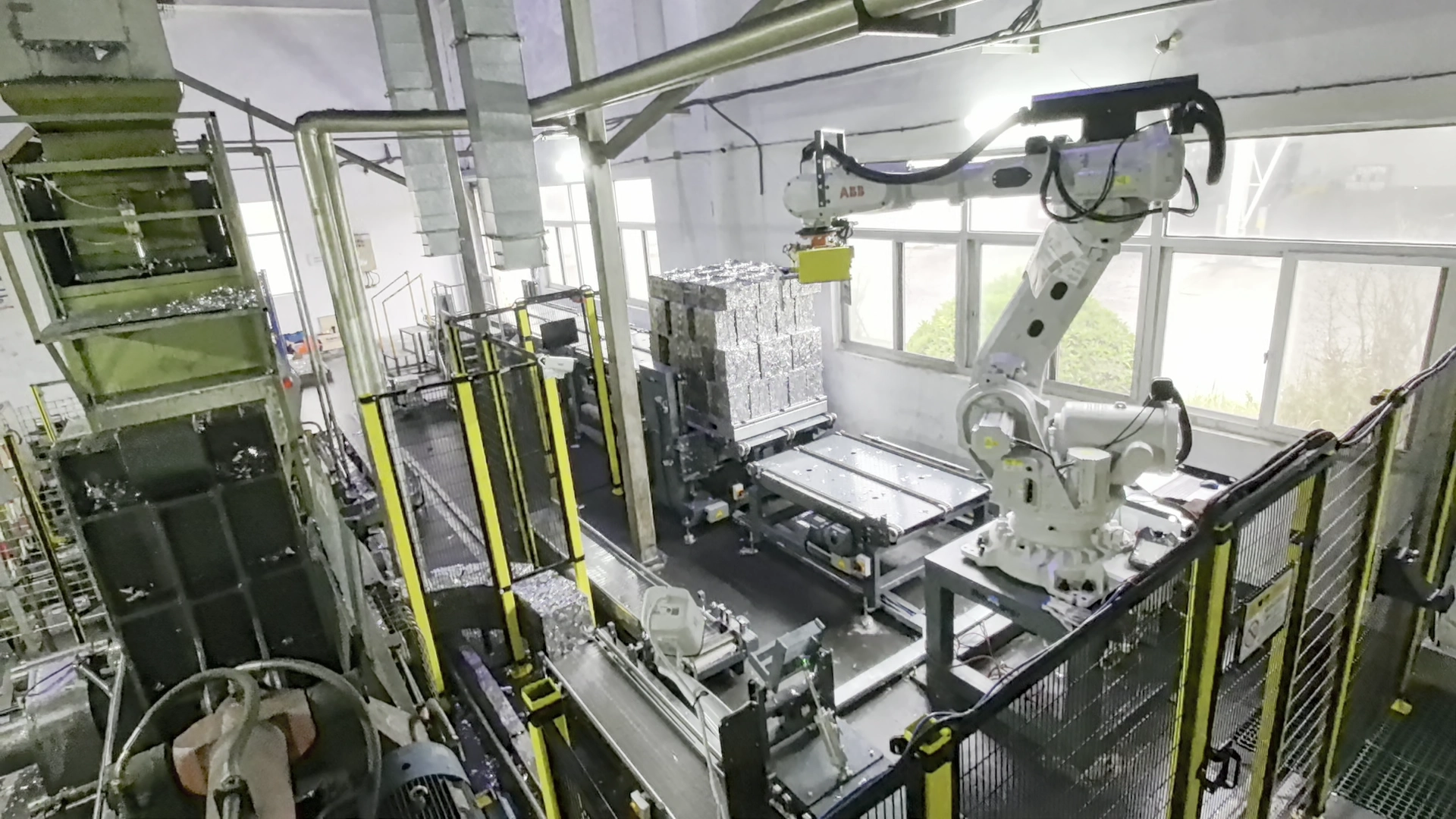

The compressed waste aluminum metal blocks will be stacked through automated stacking, achieving automatic palletless stacking of waste materials. The robot gripper is equipped with an impact resistant device, which can protect the robot arm and prevent personnel damage and material loss caused by可以按照客户的要求设计系统，并能根据客户的使用习惯及情况，提供适合的设计方案。
Pallet size: 1400x1000x150mm or customized
Weight of waste material block: 16.5kg or customized
Taping method: manual or automatic
Pallet supply: robot supply or inner automatic recycling
Size of waste material block: 300x300x165mm
Palletising method: according to customer's requirement
Equipment speed: 20S/block
产品介绍

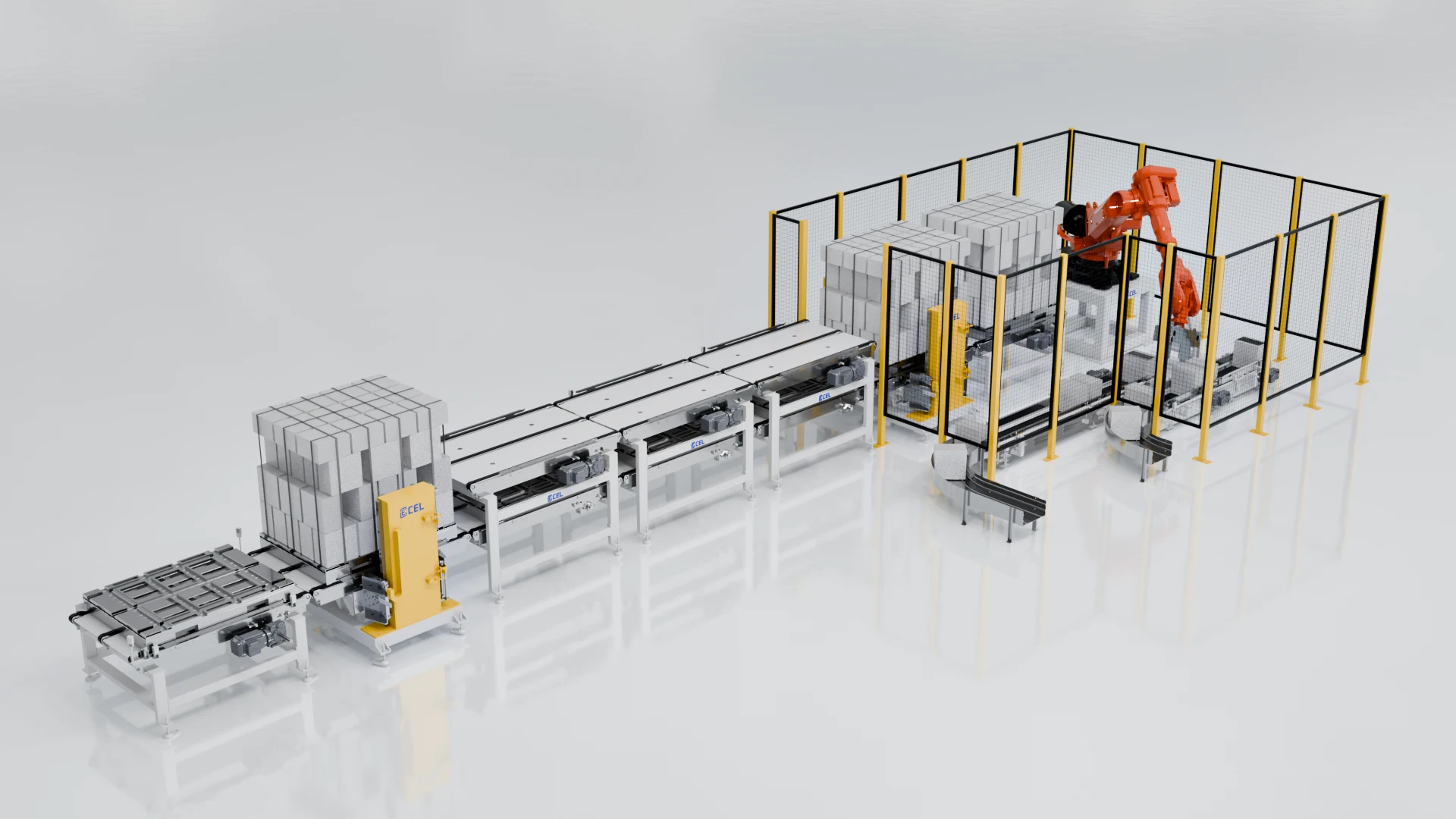

Main components
Waste block chain plate conveying
Conveyor for guiding waste packaging blocks atthe out let of the compactor
Automatic positioning unit for waste blocks
Waste package block turning mechanism
robot system
Robot gripper unit
Waste stacking station
Waste automatic conveying unit
Empty tray automatic reflux conveying unit
Protective barrier unit-equipped with safety grating
Electrical Control System(AB)
Main component brands
Robot:ABB-6700
Pneumatic components:FESTO/SMC
Motor:SEWorequivalent
PLC：AB
Low voltage system:Schneider
Touch screen:WeilunTong
